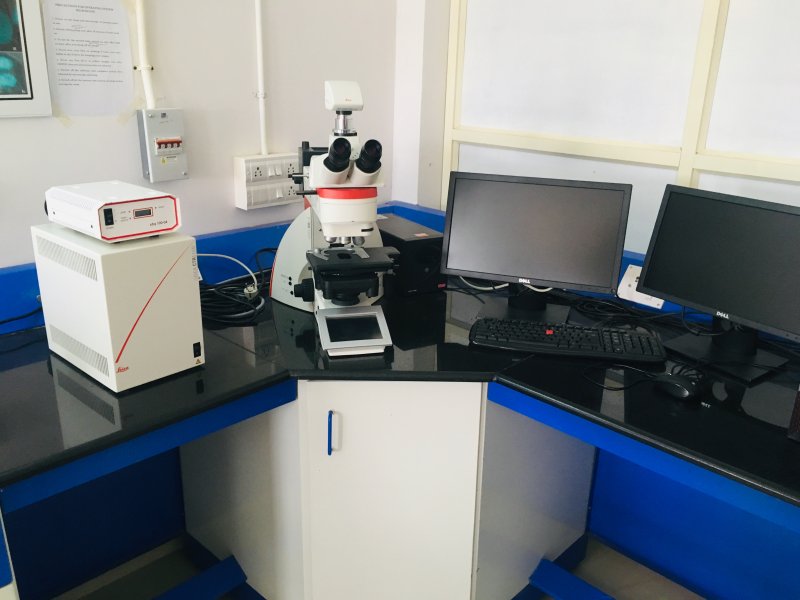

System Microscope
The Leica DM6 B utilizes intelligent automation and integrated workflow-based software to provide users an easy-to-use imaging system that is suitable for individual or multi-user laboratories.
- Easily capture publication-quality images by utilizing the 19-mm sCMOS camera imaging port
- Create fast overviews of your samples and identify the important details instantly with the LAS X Navigator Software
- Have great flexibility through the choice of accessories such as Halogen or LED illumination
- LED illumination lights your sample homogenously and with a constant color temperature, while also saving energy and avoiding bulb changes due to the LED’s lifetime of up to 25,000 hours.
- Halogen illumination does not naturally come with the constant color temperature that LEDs offer. But with the Leica DM6 B, the unique Constant Color Intensity Control (CCIC) maintains a constant color temperature of 3,200 K.
Specifications
Fluorescence Filter Properties
| Fluor. Filter Set | "color" | Ex. (nm) | Em. (nm) | Example Fluorophores |
| DAPI | BLUE | 325-375 | 435-485 | DAPI, Hoechst |
| GFP | GREEN | 450-490 | 500-550 | Fluorescein, GFP |
| RHOD | RED | 541-551 | 565-605 | Rhodamine, propidium iodide, DsRed |
Objective Properties
| Objective | Numerical Aperture |
Resolution (μm)
|
Depth of Field (mm) | Brightness | Pixel Size(µm/pixel) |
|
5x N Plan
|
0.12 | 2.54 | 69.4 | 0.1 | 0.913 |
| 10x N Plan (DIC) | 0.25 | 1.22 | 16 | 0.4 | 455 |
| 20x HCPL Fluotar (DIC) | 0.55 | 0.55 | 3.3 | 2.3 | 0.228 |
| 40x HCPL Fluotar (DIC) | 0.80 | 0.38 | 1.6 | 2.6 | 0.114 |
| 100x HCPL Fluotar (DIC) | 1.32 | 0.23 | 0.9 | 3.0 | 0.045 |
|
